12 September 2019

Truck Mounted Pumps - Available Now - 2 Only!

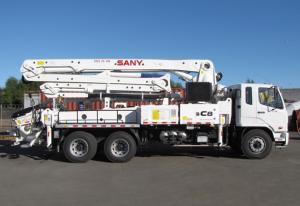

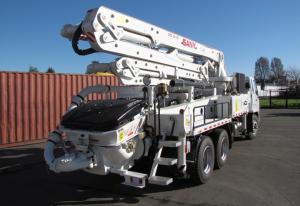

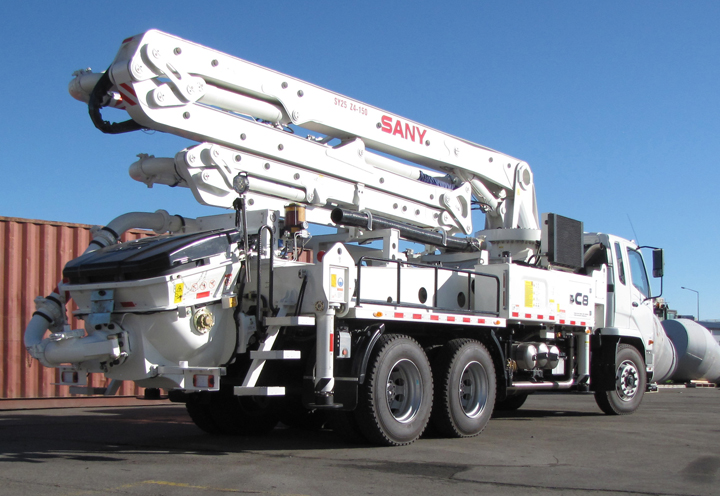

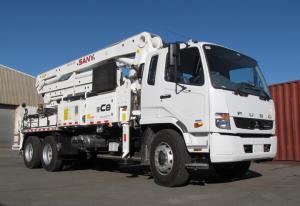

We’ve got 2 impressive SANY 25m3 Concrete Pumps all primed to go to work on either a Mitsubishi or Hino.

These quality machines are built for performance pumping and delivered with the Peace-of-Mind of lifetime support from Engineering & Plant Services.

Technical Overview:

  • 2 Available for immediate sale:
    Mounted to Mitsubishi Fuso Fighter FN2428 or Hino FM2632.
  • SANY latest boom technology, light weight 4 stage Z-fold.
  • Large pump unit with a maximum output of 150m3 per hour.
  • Delivery cylinders 200mm diameter with 1300mm stroke.
  • Gross vehicle weight:
    19,500kg (Fuso) / 19,760kg (Hino).
  • 150mm delivery pipe from the hopper.
  • Twin piping standard, straight tube hinged elbows are double lined for extreme wear.
  • Fault displayed on the monitor continually monitoring 200 functions.
  • Discharge port and transitions service life of 60,000-80,000m3.
  • Concrete piston German rubber technology abrasive and temperature resistance.
  • Wear ring/cutting rings manufactured from high wear resistant alloy to prevent crumbling and leaking for increased service life.
  • Delivery cylinders- cylinders are lined with chrome to .03mm with a hardness exceeding HV90 giving a service life approximately 80,000m3 (depending on operating condition).
  • Boom overload protection technology
  • Hopper screen interlock switches for safety. Hopper lids as standard.
  • Vibrator fitted to the grill with control switch on both sides of the hopper.
  • Horn activation switch fitted to both sides of the hopper to alert the driver.
  • European wireless remotes standard.

To find out more - view the PDF Bulletin or contact the sales team on the links below!
